Complementary Filter for Two wheel System 본문
sensor fusion technique: multiple sensors are used
Complementary filter
: Combines two sensor of having different frequency responses
1. Idea
: to use appropriate filters for typical sensor characteristics to suppress the corresponding noises.
: 일반적인 센서 특성에 적합한 필터를 사용하여 해당 노이즈를 억제하는 것
- Sensor characteristics?
the complementary filter consists of two filters
- lowpass filter for the tilt sensor
- highpass filter for the gyro sensor
Therefore, a combination of two sensors is required to estimate an angle
which is a complementary filter.
2. Filter Algorithm
complementary filter
: lowpass filter(for the tilt sensor) + highpass filter(for the gyro sensor)
<T is a time constant>

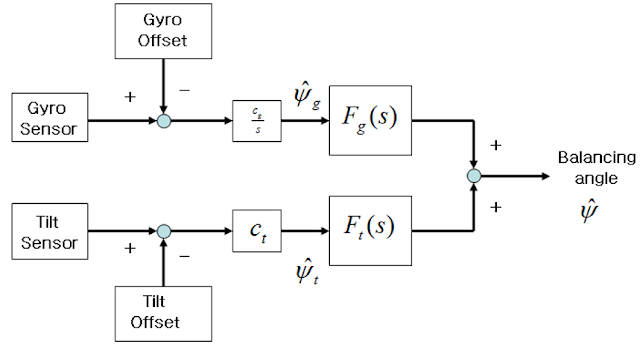

- Filter Structure
: Angle data in all ranges of the frequency are summed together to be one
: psi ^ = estimates the balancing angle
: ηH = High frequency noise
: ηL = Low frequency noise
: psi ^ = can be obtained by 'psi'
: psi = filtering the real angle
: Since noises are filtered out, becomes close to the real angle
: Whether psi is a low or high-frequency signal,
the corresponding filters are active to cancel noises in low and high frequencies
Offset Values: obtained from empirical studies for calibration
